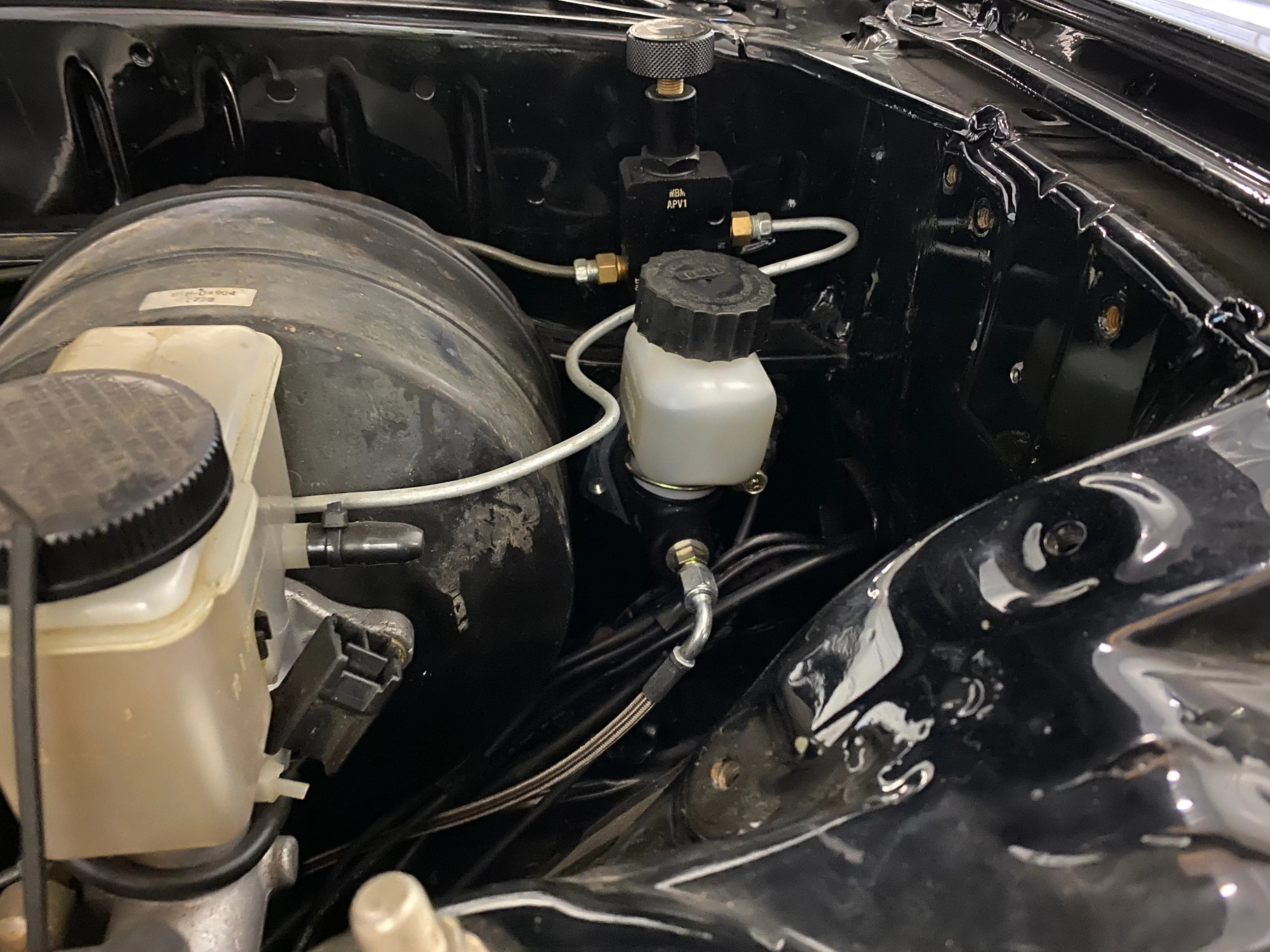

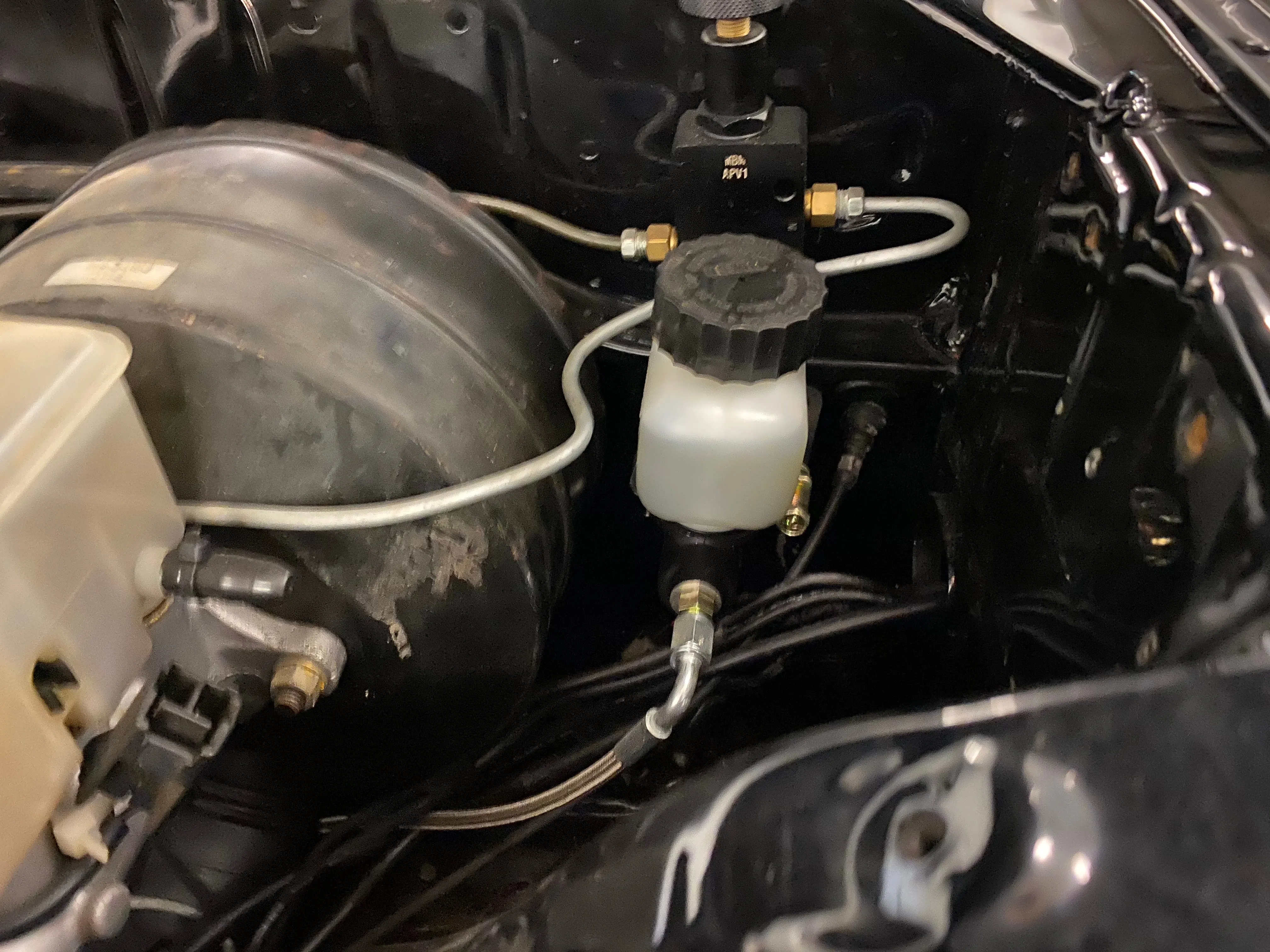

This billet adapter and larger bore master cylinder kit will allow you to do a simple bolt-in installation of the Tilton clutch master cylinder. Available in 3/4" and 13/16" bore, this larger bore master will allow for better clutch disengagement.

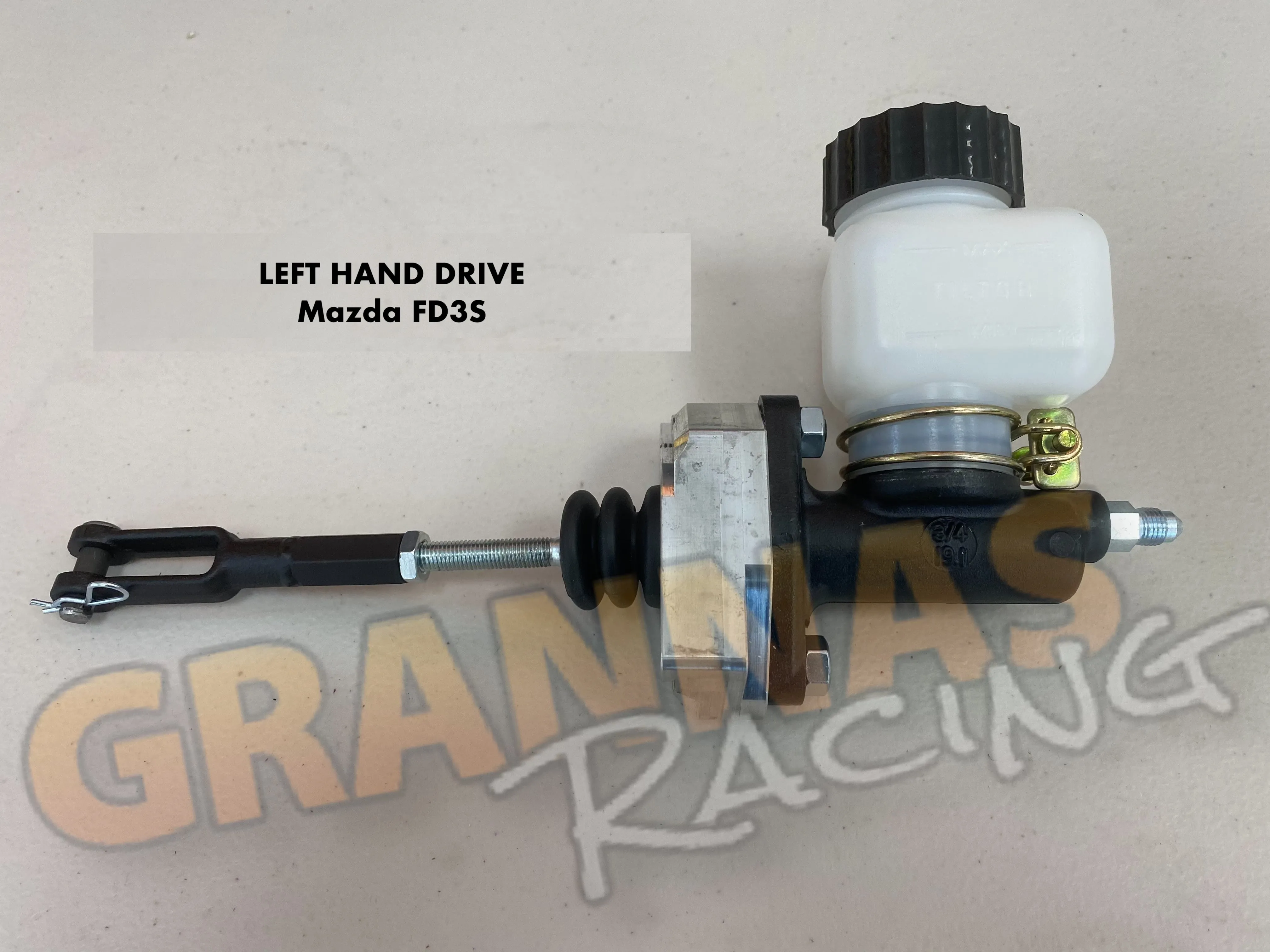

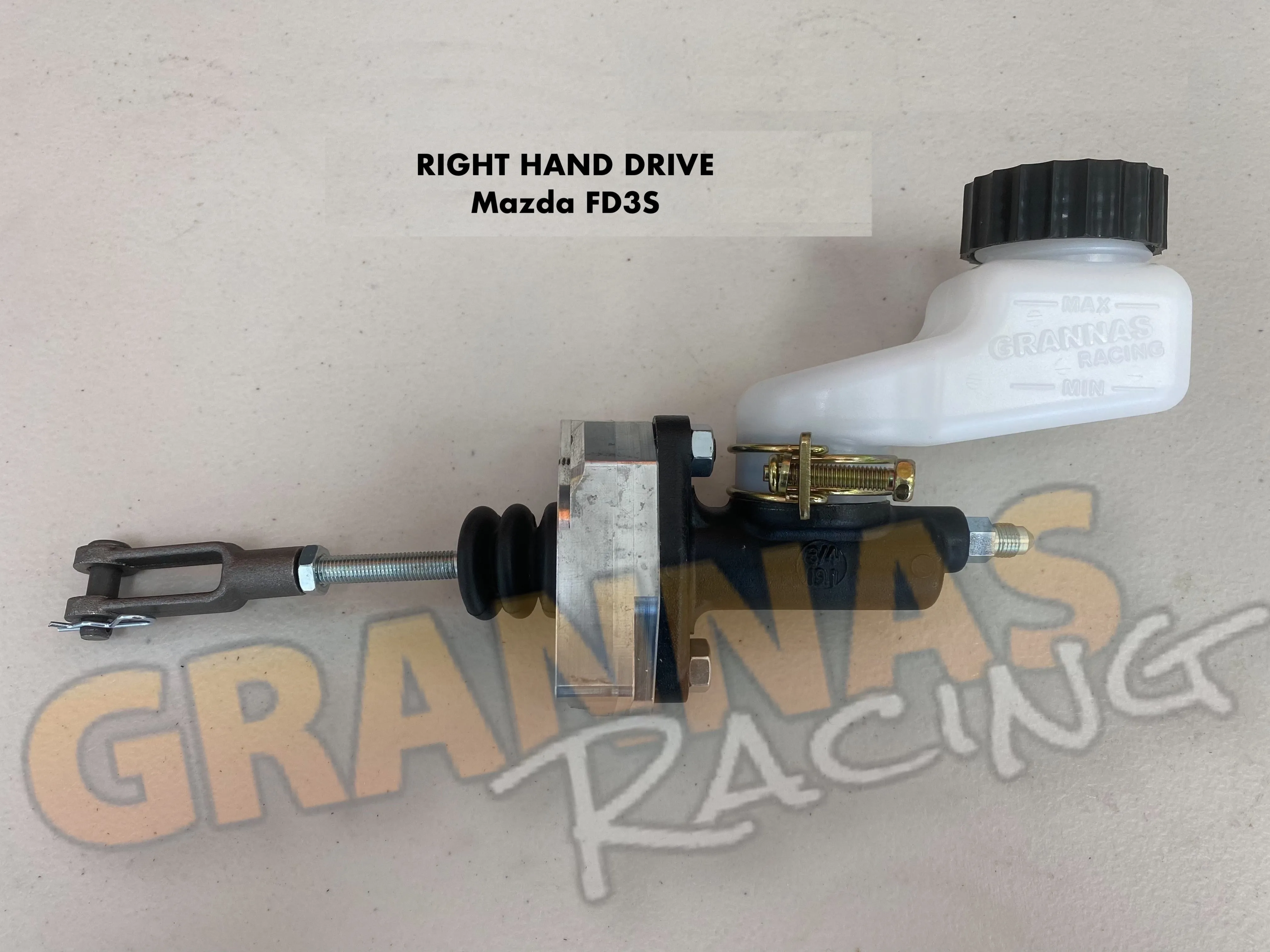

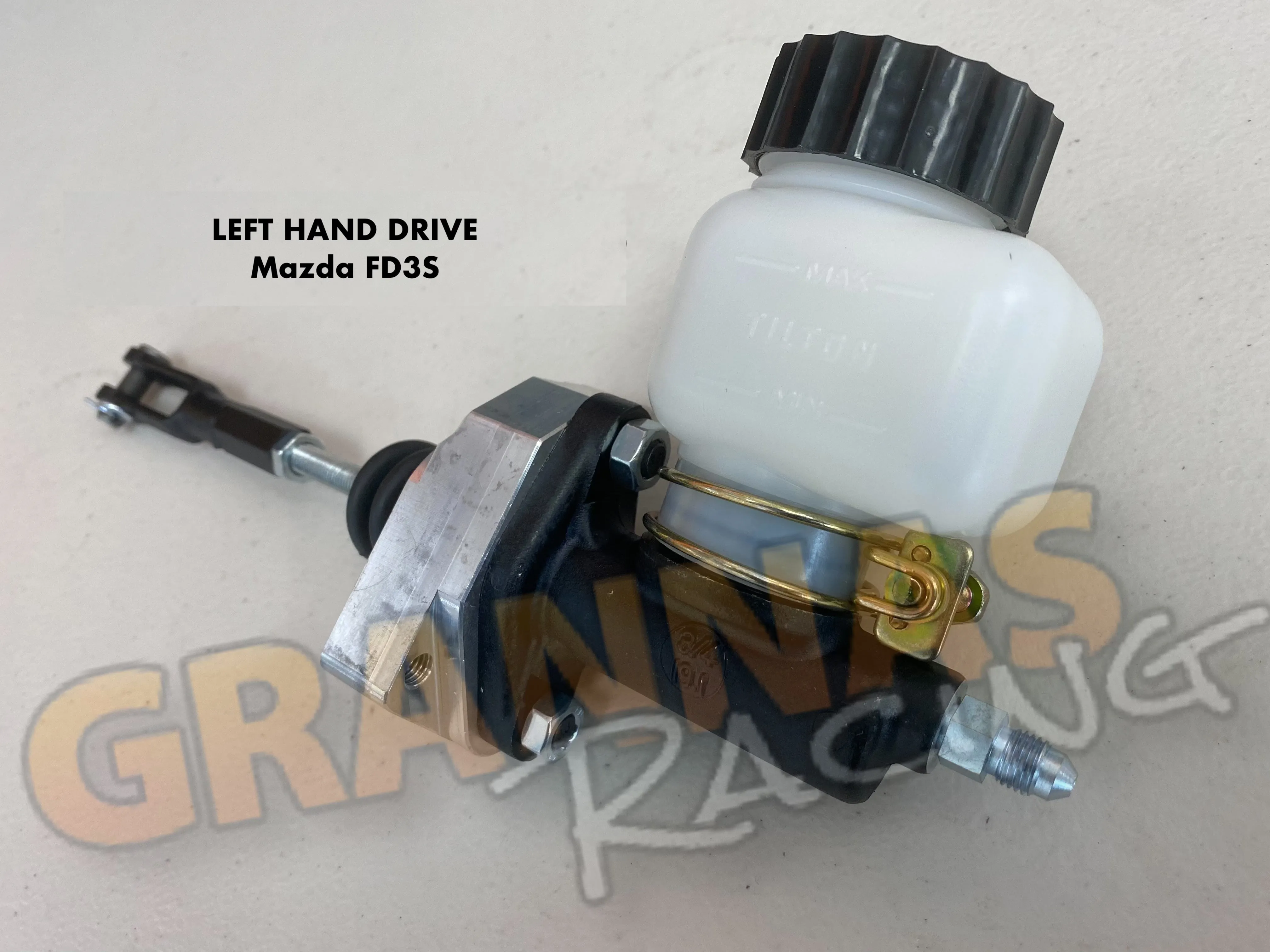

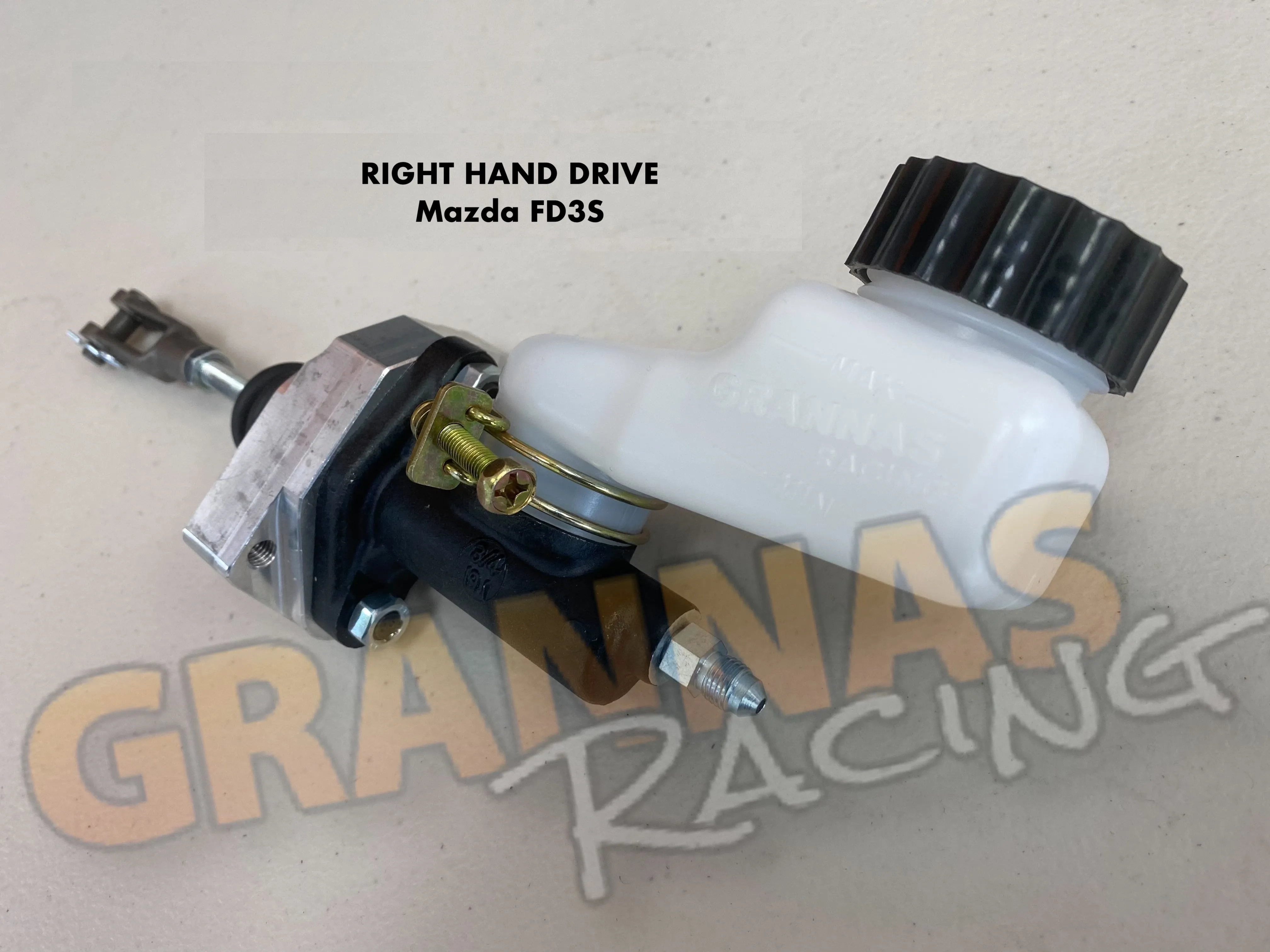

This clutch master cylinder kit with billet adapter fits LHD or RHD Mazda RX-7 (FD3S). The rx7 RHD kit comes with the Grannas Racing "RHD" angled reservoir. This will also fit other Mazda's that share the same master cylinder bolt pattern as the FD3S chassis.

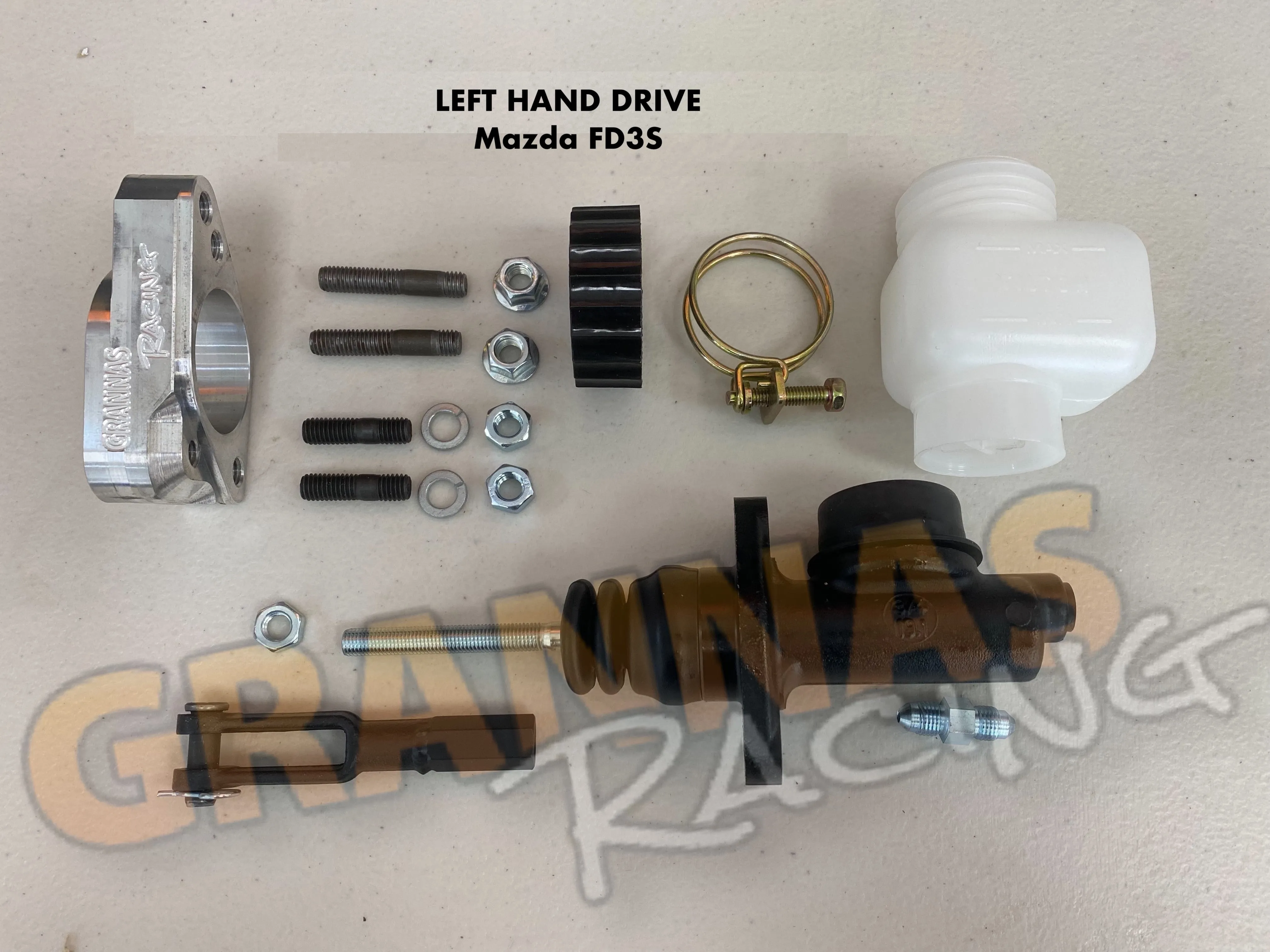

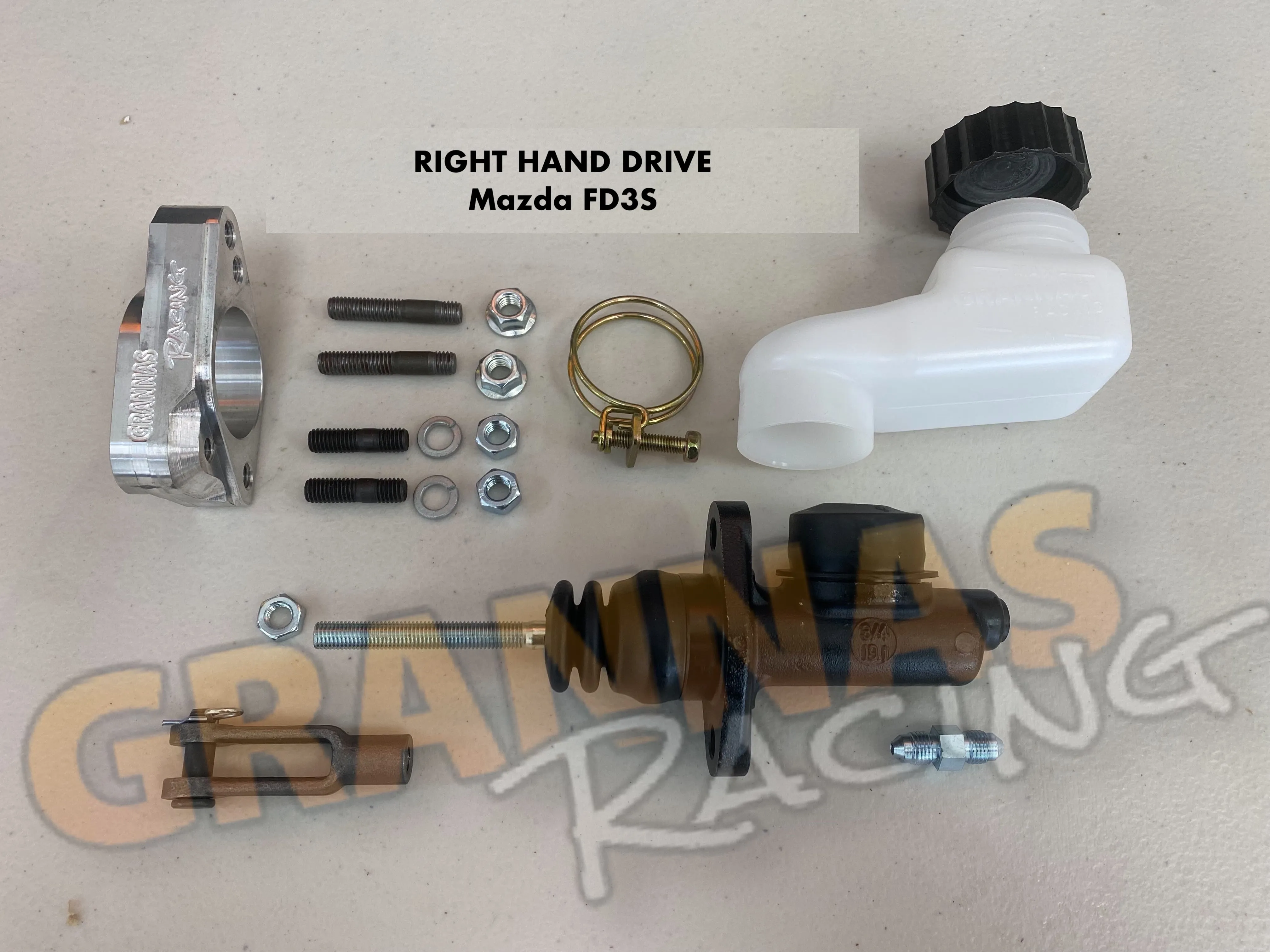

This kit includes the following:

1. Tilton master cylinder (3/4", 13/16" bore size available)
2. Reservoir, Cap, clamp, 3AN union fitting
3. Billet adapter bracket
4. Hardware/studs for installation

----

Here is the recommended master sizes for the most common clutches I sell. This is all based on using a Tilton hydraulic release bearing with these clutches:

3/4 bore:
Comp Clutches
OS Giken TR2CD, R3C or R4C
Mcleod single discs
RPS Carbon clutches
Tilton Carbon clutches

13/16 bore:
McLeod TWIN discs (RST, RXT, RXT1200)
Tilton ST246 & ST215 (both standard and HD version)
