DESCRIPTION
11/24

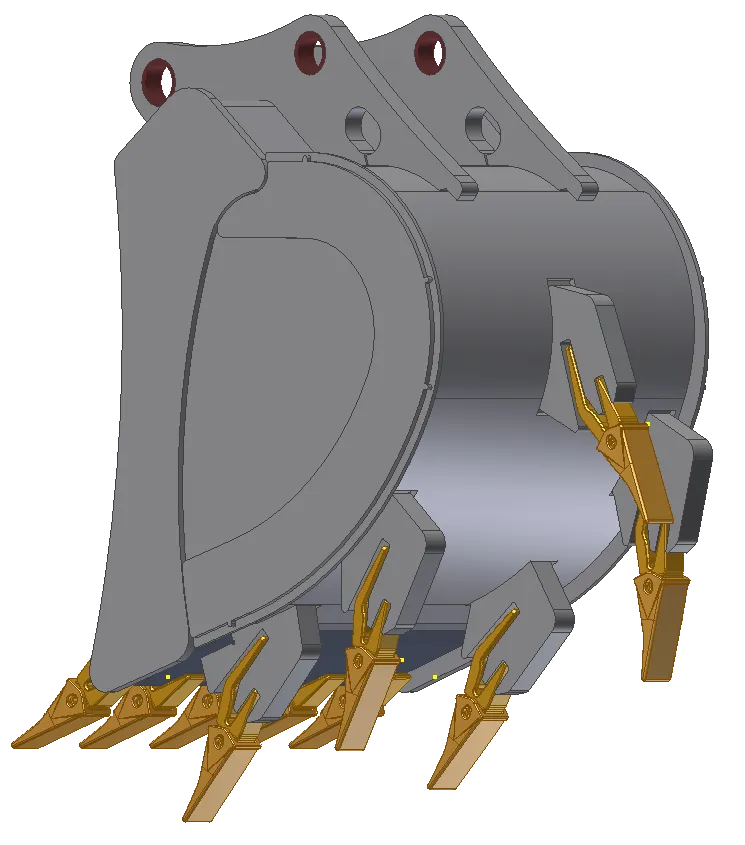

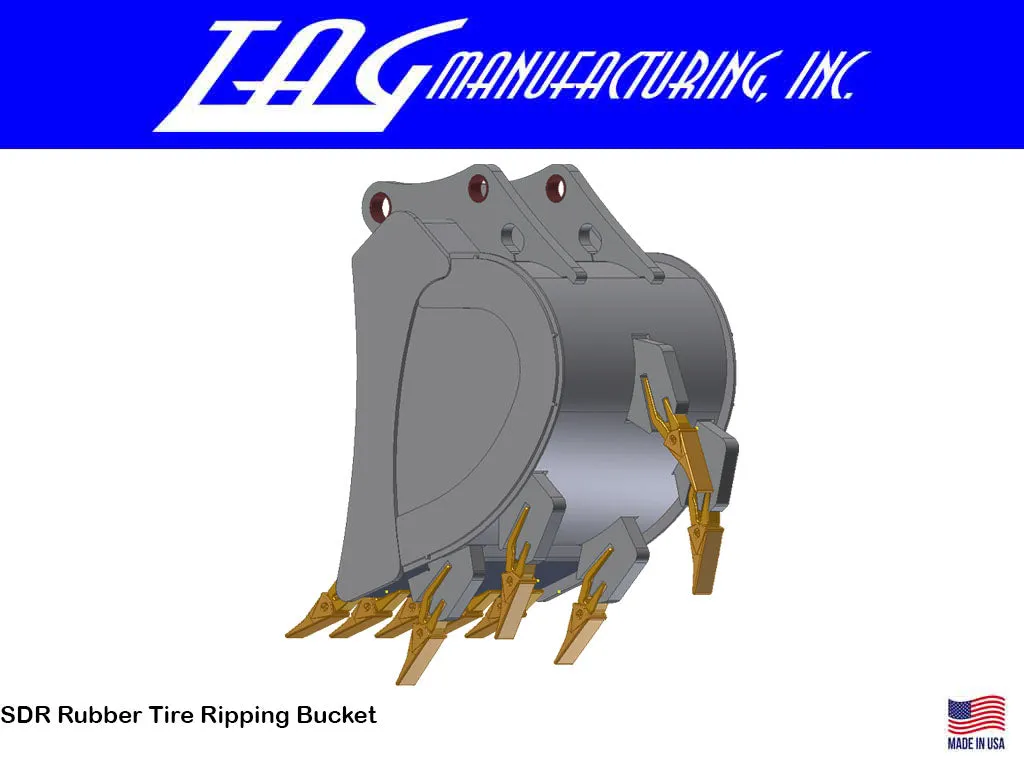

SDR Ripping Buckets
TAG Severe Duty Rock Ripping Buckets Provide A Severe Duty Bucket With Five (5) Rock Ripping Shanks Mounted On The Rear For Additional Rock Removal.
- Availability varies. LEC and TAG MFG both try and stock common items. Please call if you need to confirm estimated ship time.
- Please use the "FITS" tab to find compatible Make and model machines.
DIRECTIONS
- CHOOSE YOUR SIZE
- ADD ITEM(S) TO CART
- PROCEED TO CHECKOUT AND ENTER ADDRESS FOR SHIPPING OPTIONS
- ENTER CREDIT CARD INFORMATION IF YOU WOULD LIKE TO PURCHASE
SPECIFICATIONS
|
Part # |
Style |
Width |
Rated Capacity |
Teeth |
Weight |
| 1249R5 | Ripping | 12" | 3.950 cubic ft | 3 | 500 |
| 1649R5 | Ripping | 16" | 4.900 cubic ft | 4 | 550 |
| 1849R5 | Ripping | 18" | 5.650 cubic ft | 4 | 575 |
| 2449R5 | Ripping | 24" | 7.7850 cubic ft | 5 | 630 |
| 3049R5 | Ripping | 30" | 10.00 cubic ft | 5 | 680 |
| 3649R5 | Ripping | 36" | 12.00 cubic ft | 6 | 735 |
FITS
| BRAND | MODELS |
| Case | 580, 580M, 580N, 590, 590M, 590N |
| Cat | 416C, 416E, 420D, 420E, 428F, 432F, 434F |
| John Deere | 310C, 310D, 310E, 310G, 310J, 310K, 310SE, 310SG, 310SJ, 310SK, 410E, 410G, 410J, 410K, 510 |
| Ford | 455, 555, 555E, 655, 665E, 675E |
| Komatsu | WB140, WB146-5, WB150, WB156-5 |
| New Holland | LB75, LB90, LB95, LB110, LB115, B95C, B110C |
| Volvo | BL60, BL70 |
